3 1/4″ M-950 Series Single-Hung

With a deeper frame, numerous available installation systems, and a variety of mulling and stacking options, the M-950 is our most versatile, high performance series.

3 1/4″ M-950 Series Single-Hung – Basic Information2023-08-01T15:18:04-04:00
  • 3 1/4″ frame depth
  • 1″ sealed IGU
  • Standard rating: AW40
  • Optional ratings: AW50, AW80
  • .062 typical wall thickness, aluminum alloy 6063-T6
  • Interior and exterior accessory channels
  • Numerous installation accessories including nail fin, face flange, strap anchors and receptors
  • Blast-resistant and large missile impact models available
  • Select models approved by the Florida Building Commission

All Wojan windows and doors feature pour and debridge polyurethane thermal breaks and come with a 10-year warranty against failure of the polymer.
LEARN MORE

STANDARD FINISHES AVAILABLE

Bronze 2603

White 2603

Bronze 2605

White 2605

Black 2605

Clear Anodized

Bronze Anodized

Non-standard finishes are available with a minimum order.

3 1/4″ M-950 Series Single-Hung – Product Performance Details2023-08-01T13:39:20-04:00

PRODUCT PERFORMANCE DETAILS

RATING STRUCTURAL/
WATER/AIR
TEST SIZE
AIR INFILTRATION
(cfm/sq ft)
WATER RESISTANCE
(psf)
DEFLECTION
(psf)
STRUCTURAL*
(psf)
AW40 60″W x 99″H 0.10 @ 6.2 psf 8.15 40 60
AW40 54″W x 86″H 0.10 @ 6.2 psf 8.15 40 60
optional: AW50^ 60″W x 99″H 0.10 @ 6.2 psf 10.03 50 75
optional: AW80^ 54″W x 86″H 0.10 @ 6.2 psf 12.11 80 120

* This is an intentional overload aspect to window performance testing and should not be used in lieu of the window DP (Design Pressure) when evaluating a product for a specific project or use.

^ Many window ratings can be increased by downsizing the window and determining maximum performance through testing. Contact your local Wojan Sales Representative or our office for details.

3 1/4″ M-950 Series Single-Hung – CAD Drawings2023-08-01T15:59:44-04:00

CAD DRAWINGS

CONFIGURATION DESCRIPTION DWG PDF
Single-Hung Standard Class I Balance
Single-Hung Standard Class V Balance
3 1/4″ M-950 Series Single-Hung – Featured Projects2023-08-01T13:39:32-04:00

FEATURED PROJECTS

RICHMOND, IN


Carpenter Hall at Earlham College

ATLANTA, GA


Ashley Gables Buckhead

DETROIT, MI


Detroit Fire Dept. Stations

ARLINGTON, VA


The Leadership Institute

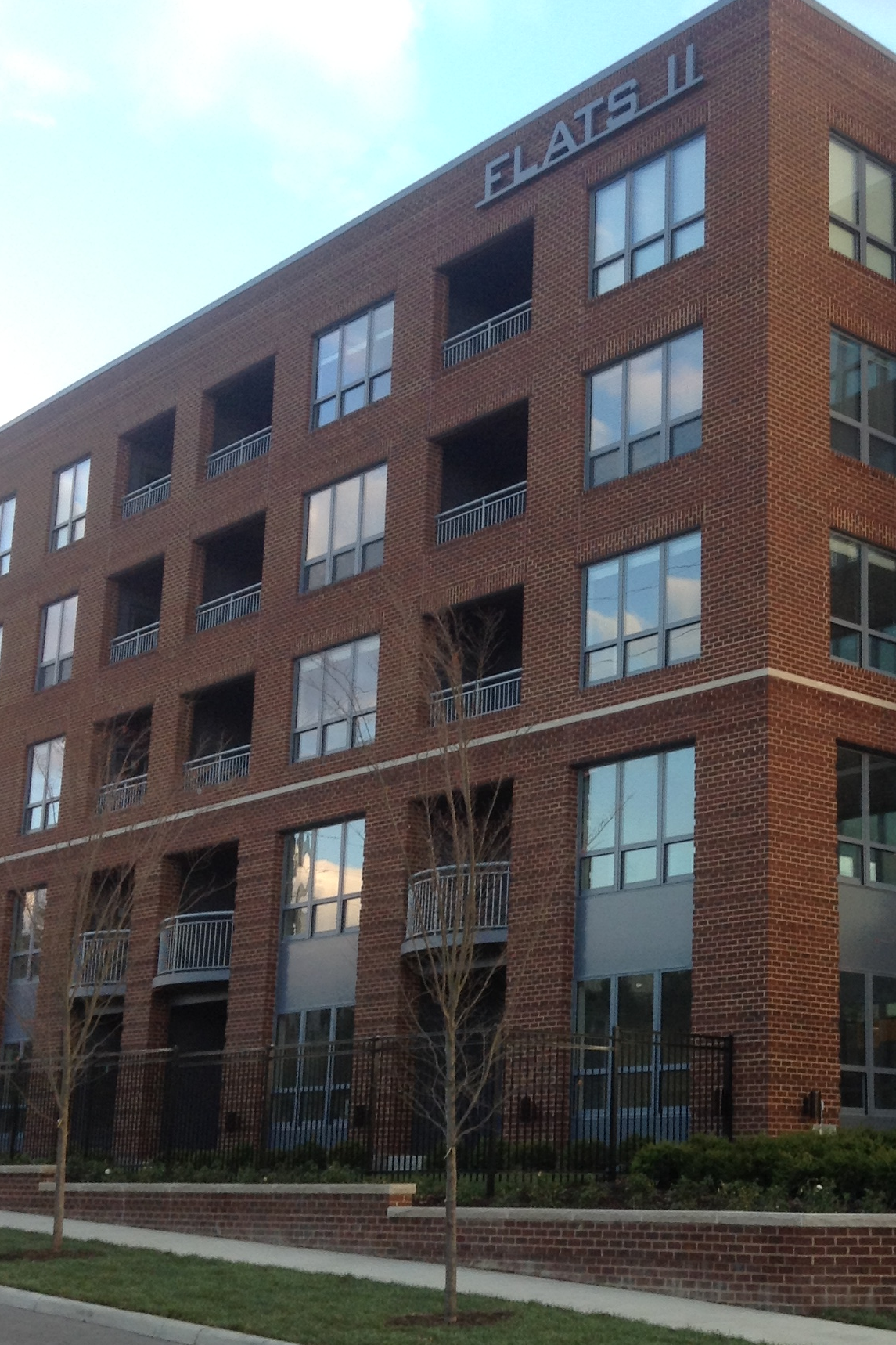

COLUMBUS, OH


Flats II Apartments, Arena District

2 11/16″ M-85 Series Single-Hung

Favored for hospitality projects, the M-85 Series is the quintessential no-nonsense performer in reliable, cost-effective windows. Also ideal for low to mid-rise commercial structures such as mixed-use apartments and condominiums where more cost-effective aluminum windows are preferred.

2 11/16″ M-85 Series Single-Hung – Basic Information2023-08-01T15:17:53-04:00
  • 2 11/16″ frame depth
  • 3/4″ sealed IGU
  • Standard rating: CW30
  • Optional ratings: CW50
  • .050 typical wall thickness, aluminum alloy 6063-T6
  • Numerous installation accessories including nail fin, face flange, strap anchors and receptors
  • Marine glazed system; easily reglazed
  • Single-hung over louver configuration is factory stacked and available with all the same features and options as the standard model
  • Large missile impact models available
  • Select models approved by the Florida Building Commission

All Wojan windows and doors feature pour and debridge polyurethane thermal breaks and come with a 10-year warranty against failure of the polymer.LEARN MORE

STANDARD FINISHES AVAILABLE

Bronze 2603

White 2603

Bronze 2605

White 2605

Black 2605

Clear Anodized

Bronze Anodized

Non-standard finishes are available with a minimum order.

2 11/16″ M-85 Series Single-Hung – Product Performance Details2023-08-01T13:50:39-04:00

PRODUCT PERFORMANCE DETAILS

RATING STRUCTURAL/WATER/AIR
TEST SIZE
AIR INFILTRATION
(cfm/sq ft)
WATER RESISTANCE
(psf)
DEFLECTION
(psf)
STRUCTURAL*
(psf)
CW30 56″W x 91″H 0.01 @ 1.6 psf 4.60 30 45
optional: CW50^ 52″W x 81″H 0.01 @ 1.6 psf 7.52 50 75

* This is an intentional overload aspect to window performance testing and should not be used in lieu of the window DP (Design Pressure) when evaluating a product for a specific project or use.

^ Many window ratings can be increased by downsizing the window and determining maximum performance through testing. Contact your local Wojan Sales Representative or our office for details.

2 11/16″ M-85 Series Single-Hung – CAD Drawings2023-08-01T15:59:49-04:00

CAD DRAWINGS

CONFIGURATION DESCRIPTION DWG PDF
Single-Hung Standard Class I Balance
2 11/16″ M-85 Series Single-Hung – Featured Projects2023-08-01T13:49:05-04:00

FEATURED PROJECTS

GLASSBORO, NJ


Rowan Boulevard Student Housing

WAUKESHA, WI


Frontier Hall, Carroll University

SYRACUSE, NY


Addition to Historic Amos Building

BORDENTOWN, NJ


Union Eagle Senior Apartments

BALTIMORE, MD


Imperial at Conkling Apartments
