3 1/4″ M1500 Series Double-Hung

Double hung windows that are suitable for both replacement and new construction projects.  Its versatility and a vast array of available options make these suitable on building types ranging from apartments to commercial projects.  Both sashes tilt in for easy cleaning, plus these models feature our custom-engineered, highly versatile dual accessory channels.

3 1/4″ M1500 Series Double-Hung – Basic Information2023-08-01T14:29:23-04:00
  • 3 1/4″ frame depth
  • 7/8″ sealed IGU
  • Standard rating: CW30
  • Optional rating: C50
  • .062/.050 typical wall thickness, aluminum alloy 6063-T6
  • Interior and exterior accessory channels
  • Dual weather seals at the sill comprised of one wool pile and one bulb seal
  • Standard auto lock at the top sash with sweep lock at the meeting rail

All Wojan windows and doors feature pour and debridge polyurethane thermal breaks and come with a 10-year warranty against failure of the polymer.LEARN MORE

STANDARD FINISHES AVAILABLE

Bronze 2603

White 2603

Bronze 2605

White 2605

Black 2605

Clear Anodized

Bronze Anodized

Non-standard finishes are available with a minimum order.

3 1/4″ M1500 Series Double-Hung – Product Performance Details2023-08-01T14:11:12-04:00

PRODUCT PERFORMANCE DETAILS

RATING STRUCTURAL/WATER/AIR
TEST SIZE
AIR INFILTRATION
(cfm/sq ft)
WATER RESISTANCE
(psf)
DEFLECTION
(psf)
STRUCTURAL*
(psf)
CW30 56″W x 91″H 0.17 @ 1.57 psf 6.06 30 45
optional: C50^ 56″W x 91″H 0.17 @ 1.57 psf 7.52 50 75

* This is an intentional overload aspect to window performance testing and should not be used in lieu of the window DP (Design Pressure) when evaluating a product for a specific project or use.

Many window ratings can be increased by downsizing the window and determining maximum performance through testing. Contact your local Wojan Sales Representative or our office for details.

3 1/4″ M1500 Series Double-Hung – CAD Drawings2023-08-01T15:59:54-04:00

CAD DRAWINGS

CONFIGURATION DESCRIPTION DWG PDF
Interior View
Corner Cut
Lock Options Assembly

3 1/4″ M1500 Series Double-Hung with Integral Face Flange

Double hung windows that are suitable for both replacement and new construction projects.  Its versatility and a vast array of available options make these suitable on building types ranging from apartments to commercial projects.  Both sashes tilt in for easy cleaning, plus these models feature our custom-engineered, highly versatile dual accessory channels.

3 1/4″ M1500 Series Double-Hung with Integral Face Flange – Basic Information2023-08-01T14:02:51-04:00
  • 3 1/4″ frame depth
  • 7/8″ sealed IGU
  • Dual accessory channels
  • Standard auto lock at the top sash with sweep lock at the meeting rail
  • .062/.050 typical wall thickness – aluminum alloy 6063-T6
  • Step jamb design results in greater resistance to air infiltration
  • Interlock meeting rails for a weather tight seal
  • Equal sight lines top and bottom sash for more viewing area
  • Block and tackle balances for smooth, easy operation
  • Tilt latches allow sashes to be tilted inward for easy cleaning
  • Dual weatherstripping creates an energy efficient, virtually weather tight seal
  • Custom sized – no matrix
  • Marine glazed system; easily re-glazed

All Wojan windows and doors feature pour and debridge polyurethane thermal breaks and come with a 10-year warranty against failure of the polymer.LEARN MORE

STANDARD FINISHES AVAILABLE

Bronze 2603

White 2603

Bronze 2605

White 2605

Black 2605

Clear Anodized

Bronze Anodized

Non-standard finishes are available with a minimum order.

3 1/4″ 1600H Series Historic Double-Hung

Approved by the National Park Service, the 1600H is an historic aluminum double-hung window revitalizing historic buildings to creating new construction.  The 1600H Series  is one of the most versatile and elegant products.  Like the M1500 both sashes tilt in for easy cleaning, plus these models feature our custom-engineered, highly versatile dual accessory channels.

3 1/4″ 1600H Series Historic Double-Hung – Basic Information2023-08-01T14:04:17-04:00
  • 3 1/4″ frame depth
  • 5/8″ sealed IGU
  • Standard rating: CW30
  • Optional rating: C50
  • .062/.050 typical wall thickness, aluminum alloy 6063-T6
  • Interior and exterior accessory channels
  • Standard auto lock at the top sash with sweep lock at the meeting rail
  • Dual accessory channels
  • Dual weather seals at the sill comprised of one wool pile and one bulb seal
  • Marine glazed system; easily reglazed
  • Numerous installation accessories including nail fin, face flange, strap anchors and receptors

All Wojan windows and doors feature pour and debridge polyurethane thermal breaks and come with a 10-year warranty against failure of the polymer.LEARN MORE

STANDARD FINISHES AVAILABLE

Bronze 2603

White 2603

Bronze 2605

White 2605

Black 2605

Clear Anodized

Bronze Anodized

Non-standard finishes are available with a minimum order.

3 1/4″ 1600H Series Historic Double-Hung – Product Performance Details2023-08-01T14:04:48-04:00

PRODUCT PERFORMANCE DETAILS

RATING STRUCTURAL/WATER/AIR
TEST SIZE
AIR INFILTRATION
(cfm/sq ft)
WATER RESISTANCE
(psf)
DEFLECTION
(psf)
STRUCTURAL*
(psf)
CW30 56″W x 91″H 0.17 @ 1.57 psf 4.59 30 45
optional: C50^ 56″W x 91″H 0.17 @ 1.57 psf 7.52 50 75

* This is an intentional overload aspect to window performance testing and should not be used in lieu of the window DP (Design Pressure) when evaluating a product for a specific project or use.

^ Many window ratings can be increased by downsizing the window and determining maximum performance through testing. Contact your local Wojan Sales Representative or our office for details.

3 1/4″ 1600H Series Historic Double-Hung with Integral Face Flange

Approved by the National Park Service, the 1600H is an historic aluminum double-hung window revitalizing historic buildings to creating new construction.  The 1600H Series  is one of the most versatile and elegant products.  Like the M1500 both sashes tilt in for easy cleaning, plus these models feature our custom-engineered, highly versatile dual accessory channels.

3 1/4″ 1600H Series Historic Double-Hung with Integral Face Flange – Basic Information2023-08-01T14:06:35-04:00
  • 3 1/4" frame depth
  • 7/8" sealed IGU
  • Dual accessory channels
  • Standard auto lock at the top sash with sweep lock at the meeting rail
  • .062/.050 typical wall thickness - aluminum alloy 6063-T6
  • Step jamb design results in greater resistance to air infiltration
  • Interlock meeting rails for a weather tight seal
  • Equal sight lines top and bottom sash for more viewing area
  • Block and tackle balances for smooth, easy operation
  • Tilt latches allow sashes to be tilted inward for easy cleaning
  • Dual weatherstripping creates an energy efficient, virtually weather tight seal
  • Custom sized - no matrix
  • Marine glazed system; easily re-glazed

All Wojan windows and doors feature pour and debridge polyurethane thermal breaks and come with a 10-year warranty against failure of the polymer.LEARN MORE

STANDARD FINISHES AVAILABLE

Bronze 2603

White 2603

Bronze 2605

White 2605

Black 2605

Clear Anodized

Bronze Anodized

Non-standard finishes are available with a minimum order.

3 1/4″ 1600H Series Historic Double-Hung with Integral Face Flange – Featured Projects2023-08-01T14:07:06-04:00

FEATURED PROJECTS

BETHLEHEM, PA


601 East Broad Street

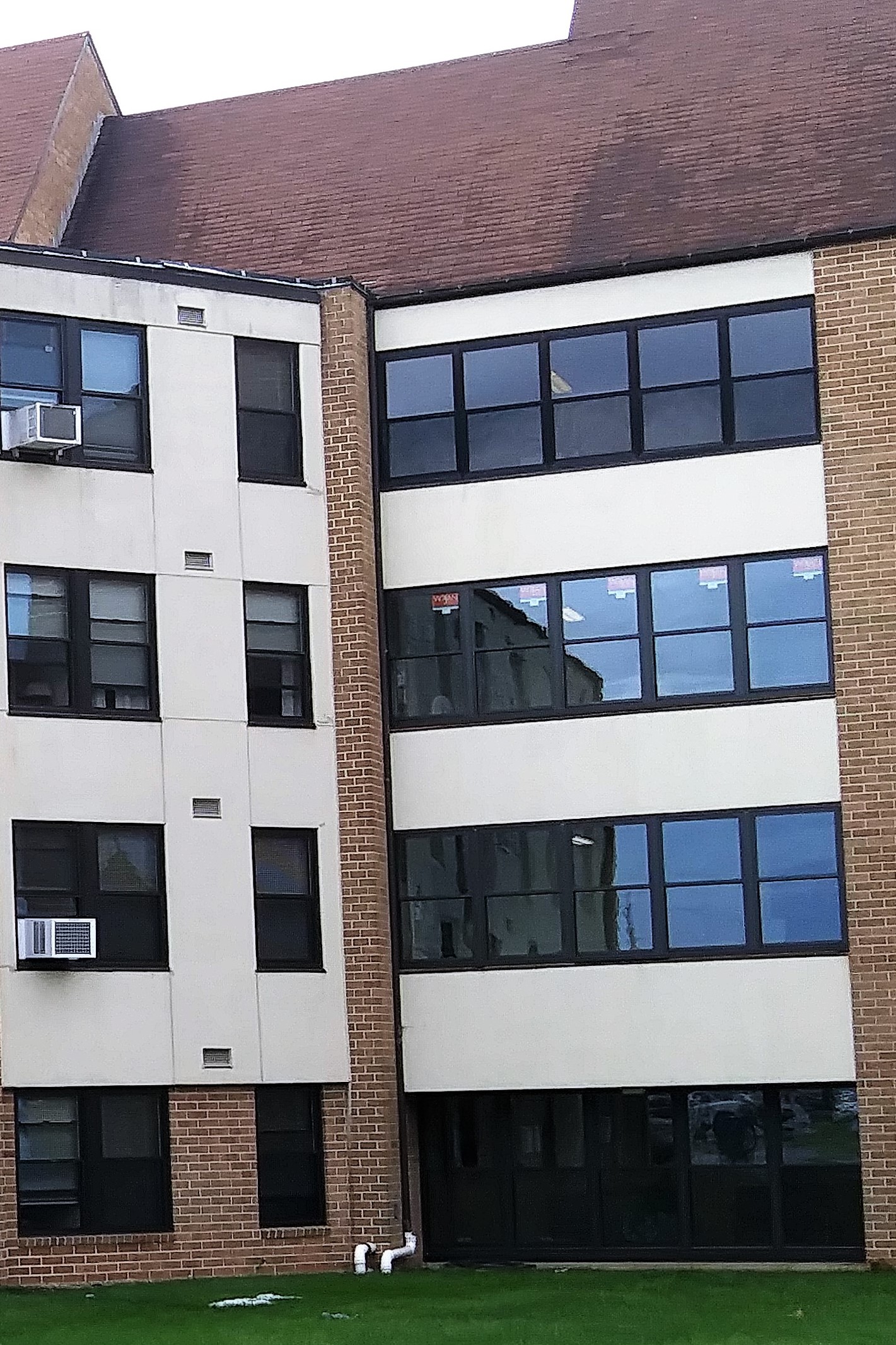

QUAKERTOWN, PA


Grundy House Senior Apartments

MOLINE, IL


Axis Hotel, Tapestry by Hilton®

CHICAGO, IL


Rosenwald Courts Apartments

PEARL RIVER, NY


Hilton® Hotel
