2 3/8″ 4600 Series Project-Out Awning

Our heavy-duty 4500/4600 Series is a rugged, durable, and affordable option in projected windows.  The unique integral mulling/stacking system provides a virtually unlimited selection of multi-window configurations within a single master frame.

2 3/8″ 4600 Series Project-Out Awning – Basic Information2023-08-01T15:37:49-04:00
  • 2 3/8″ frame depth
  • 1″ sealed IGU
  • Standard rating: AW40
  • Optional rating: AW65
  • .080 typical wall thickness, aluminum alloy 6063-T6
  • Integral mulling/stacking system
  • Mulling and sub-frame options
  • Available with an integral nail fin.

All Wojan windows and doors feature pour and debridge polyurethane thermal breaks and come with a 10-year warranty against failure of the polymer.LEARN MORE

STANDARD FINISHES AVAILABLE

Bronze 2603

White 2603

Bronze 2605

White 2605

Black 2605

Clear Anodized

Bronze Anodized

Non-standard finishes are available with a minimum order.

2 3/8″ 4600 Series Project-Out Awning – Product Performance Details2023-08-01T15:38:41-04:00

PRODUCT PERFORMANCE DETAILS

RATING STRUCTURAL/
WATER/AIR
TEST SIZE
AIR INFILTRATION
(cfm/sq ft)
WATER RESISTANCE
(psf)
DEFLECTION
(psf)
STRUCTURAL*
(psf)
AW40 60”W x 36”H 0.03 @ 6.27 psf 8.15 40 60
optional: AW65^ 60”W x 36”H 0.03 @ 6.27 psf 12.11 65 97.5
with Roto Operator: AW40+ 60”W x 36”H 0.01 @ 6.27 psf 8.15 40 60

* This is an intentional overload aspect to window performance testing and should not be used in lieu of the window DP (Design Pressure) when evaluating a product for a specific project or use.

^ Many window ratings can be increased by downsizing the window and determining maximum performance through testing. Contact your local Wojan Sales Representative or our office for details.

+ ADA compliant option available. ADA Compliant option per AAMA 513-12 with an average operating force of less than 5 lbf for lock handles and operator. All testing based on AAMA 513-12 without air, water and structural allowances or reductions; but including sampling, test equipment and methodology qualifications.

2 3/8″ 4600 Series Project-Out Awning – CAD Drawings2023-08-01T15:39:22-04:00

CAD DRAWINGS

CONFIGURATION DESCRIPTION DWG PDF
Project-Out Awning Pushout
Project-Out Awning Roto
Project-Out Twin Awning Pushout
Project-Out Twin Awning Roto

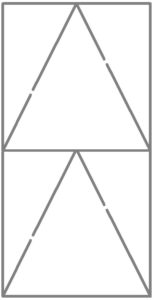

Project-Out Awning over Project-Out Awning Pushout
Project-Out Awning over Project-Out Awning Roto
Project-Out Awning Pushout over Fixed
Project-Out Awning Roto over Fixed
Fixed over Project-Out Awning Pushout
Fixed over Project-Out Awning Roto

Contact us for other configurations.

2 3/8″ 4600 Series Project-Out Awning – Featured Projects2023-08-01T15:40:11-04:00

FEATURED PROJECTS

HUNTINGBURG, IN


Stork Place Apts.

MAINEVILLE, OH


Cartridge Brewing

CHICAGO, IL


Ivy Boutique Hotel

CLEVELAND, OH


FKMB Lofts

MILWAUKEE, WI


Greenwich Park Apts.

2 3/8″ 4600 Series Project-Out Casement

Our heavy-duty 4500/4600 Series is a rugged, durable, and affordable option in projected windows.  The unique integral mulling/stacking system provides a virtually unlimited selection of multi-window configurations within a single master frame.

2 3/8″ 4600 Series Project-Out Casement – Basic Information2023-08-01T15:47:11-04:00
  • 2 3/8″ frame depth
  • 1” sealed IGU
  • Standard rating: AW40
  • Optional rating: AW70
  • .080 typical wall thickness – aluminum alloy 6063-T6
  • Integral mulling/stacking system
  • Mulling and sub-frame options
  • Available with an integral nail fin.

All Wojan windows and doors feature pour and debridge polyurethane thermal breaks and come with a 10-year warranty against failure of the polymer.LEARN MORE

STANDARD FINISHES AVAILABLE

Bronze 2603

White 2603

Bronze 2605

White 2605

Black 2605

Clear Anodized

Bronze Anodized

Non-standard finishes are available with a minimum order.

2 3/8″ 4600 Series Project-Out Casement – Product Performance Details2023-08-01T15:47:48-04:00

PRODUCT PERFORMANCE DETAILS

RATING STRUCTURAL/
WATER/AIR
TEST SIZE
AIR INFILTRATION
(cfm/sq ft)
WATER RESISTANCE
(psf)
DEFLECTION
(psf)
STRUCTURAL*
(psf)
AW40 36″W x 60″H 0.05 @ 6.27 psf 8.15 40 60
optional: AW70^ 36″W x 60″H 0.05 @ 6.27 psf 12.11 70 105

* This is an intentional overload aspect to window performance testing and should not be used in lieu of the window DP (Design Pressure) when evaluating a product for a specific project or use.

^ Many window ratings can be increased by downsizing the window and determining maximum performance through testing. Contact your local Wojan Sales Representative or our office for details.

2 3/8″ 4600 Series Project-Out Casement – CAD Drawings2023-08-01T15:48:13-04:00

CAD DRAWINGS

CONFIGURATION DESCRIPTION DWG PDF
(left shown, right opposite) Project-Out Casement Pushout
Project-Out Casement Roto

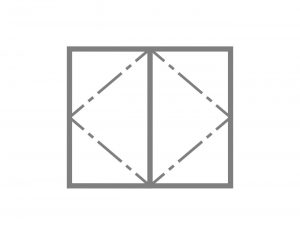

Project-Out Twin Casement Pushout
Project-Out Twin Casement Roto
(left shown, right opposite) Project-Out Casement Pushout over Fixed
Project-Out Casement Roto over Fixed
(left shown, right opposite) Fixed over Project-Out Casement Pushout
Fixed over Project-Out Casement Roto
(left shown, right opposite) Fixed over Project-Out Casement Pushout over Fixed
Fixed over Project-Out Casement Roto over Fixed

Call us for other configurations.

2 3/8″ 4600 Series Project-Out Casement – Featured Projects2023-08-01T15:48:44-04:00

FEATURED PROJECTS

QUEENS, NY


Courtyard by Marriott®

NEWARK, NJ


Lady Liberty Charter School

CLEVELAND, OH


Quattro Condos

KALAMAZOO, MI


2701 West Apartments

BINGHAMTON, NY


Volunteers of America Housing

2 3/8″ 4500 Series Project-In Hopper

Our heavy-duty 4500/4600 Series is a rugged, durable, and affordable option in projected windows.  The unique integral mulling/stacking system provides a virtually unlimited selection of multi-window configurations within a single master frame.

2 3/8″ 4500 Series Project-In Hopper – Basic Information2023-08-01T15:53:21-04:00
  • 2 3/8" Frame depth
  • 1” sealed IGU
  • Standard rating: AW40
  • Optional ratings: AW70, AW90
  • .080 typical wall thickness – aluminum alloy 6063-T6
  • Integral mulling/stacking system
  • Mulling and sub-frame options
  • Available with an integral nail fin.

All Wojan windows and doors feature pour and debridge polyurethane thermal breaks and come with a 10-year warranty against failure of the polymer.LEARN MORE

STANDARD FINISHES AVAILABLE

Bronze 2603

White 2603

Bronze 2605

White 2605

Black 2605

Clear Anodized

Bronze Anodized

Non-standard finishes are available with a minimum order.

2 3/8″ 4500 Series Project-In Hopper – Product Performance Details2023-08-01T15:54:12-04:00

PRODUCT PERFORMANCE DETAILS

RATING STRUCTURAL/
WATER/AIR
TEST SIZE
AIR INFILTRATION
(cfm/sq ft)
WATER RESISTANCE
(psf)
DEFLECTION
(psf)
STRUCTURAL*
(psf)
AW40 60″W x 36″H 0.08 @ 6.27 psf 8.15 40 60
optional: AW70^ 60″W x 36″H  0.08 @ 6.27 psf 12.11 70 105
optional: AW90^ 60″W x 36″H  0.08 @ 6.27 psf 12.11 90 135

* This is an intentional overload aspect to window performance testing and should not be used in lieu of the window DP (Design Pressure) when evaluating a product for a specific project or use.

^ Many window ratings can be increased by downsizing the window and determining maximum performance through testing. Contact your local Wojan Sales Representative or our office for details.

2 3/8″ 4500 Series Project-In Hopper – CAD Drawings2023-08-01T15:54:36-04:00

CAD DRAWINGS

CONFIGURATION DESCRIPTION DWG PDF
Project-In Hopper
Project-In Twin Hopper
Project-In Hopper over Project-In Hopper
Project-In Hopper over Fixed
Fixed over Project-In  Hopper

Call us for other configurations.

2 3/8″ 4500 Series Project-In Hopper – 4500/4600 Series Integral Nail Fin2023-08-01T15:57:30-04:00

4500/4600 Series with Integral Nail Fin

The integral nail fin provides a complete exterior weather-barrier as part of the fixed window frame.

  • Integral to all 4 sides of the exterior fixed window frame.
  • Not an “add-on” piece; no seam caulking required.
  • Less costly because there is no applied nail fin needed.
  • Reduces the risk and chance of exterior water penetration.
  • Installation is simple. Seal behind the nail fin, butter the corners, and fasten through the nail fin.
  • Ability to connect with other Wojan nail fin products. Factory applied or field applied.
  • Available on all 4500 and 4600 Series products.

All master frames feature pour and debridge polyurethane thermal breaks with a 10-year warranty against failure of the polymer. This eliminates total severe cold weather transfer from the exterior, which causes interior condensation.LEARN MORE

2 3/8″ 4500 Series Project-In Hopper – Featured Projects2023-08-01T15:55:53-04:00

FEATURED PROJECTS

HOUSTON, TX


M5250 Apartments

WASHINGTON, D.C.


Park Van Ness Apts.

RANTOUL, IL


Rantoul High School

HEMPSTEAD, NY


175 Fulton Ave.

RICHMOND, KY


Keene Hall at EKU
