SLIDING GLASS DOORS

Home » DOORS » SLIDING GLASS DOORS
SLIDING GLASS DOORS2023-08-14T13:27:46-04:00

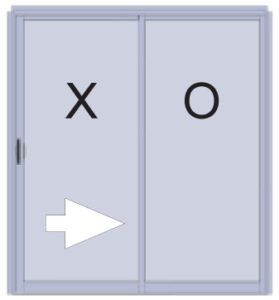

3 1/2″ 2125/2140 Series Sliding Glass Doors

Custom aluminum sliding glass doors fit new and old construction projects.  Traditional styling with the space saving convenience for access to the outdoors with the smooth and secure gliding.

3 1/2″ 2125/2140 Series Sliding Glass Doors – Basic Information2023-08-01T17:39:53-04:00
  • 3 1/2” jamb depth with integral accessory channels, interior and exterior
  • 3/4” sealed IGU with a 10-year limited warranty
  • Reversible frame kit shipped as knock-down (KD), panels completely assembled and glazed
  • Optional complete KD program available
  • Legacy handleset with EZ handle – black color standard (custom color/finish options available)
  • Rolling screen-extruded aluminum frame with fiberglass cloth standard (aluminum cloth optional)
  • Clear anodized sill
  • New construction sizes with field applied nail fin

All Wojan windows and doors feature pour and debridge polyurethane thermal breaks and come with a 10-year warranty against failure of the polymer.LEARN MORE

STANDARD FINISHES AVAILABLE

Bronze 2603

White 2603

Bronze 2605, White 2605, Black 2605, Anodized,
and other non-standard finishes are available with a minimum order.

3 1/2″ 2125/2140 Series Sliding Glass Doors – Product Performance Details2023-08-01T17:40:23-04:00

PRODUCT PERFORMANCE DETAILS

MODEL RATING FRAME SIZE AIR INFILTRATION
(cfm/sq ft)
WATER RESISTANCE
(psf)
DEFLECTION
(psf)
STRUCTURAL*
(psf)
2125, OX LC25 87″W x 83″H 0.21 @ 1.57 psf 3.76 25 37.5
2140, OX LC40 87″W x 83″H 0.21 @ 1.57 psf 6.06 40 60

This is an intentional overload aspect to performance testing and should not be used in lieu of the DP (Design Pressure) when evaluating a product for a specific project or use.

4 3/4″ 2500/2600/2800 Series Sliding Glass Doors

Connecting with the outdoors inside and bringing in plenty of natural light.  The custom aluminum sliding glass doors fit new and old construction.  Traditional styling with the space saving convenience and the smooth and secure gliding.

4 3/4″ 2500/2600/2800 Series Sliding Glass Doors – Basic Information2023-08-01T17:43:00-04:00
  • 4 3/4″ jamb depth
  • 1″ sealed IGU with a 10-year limited warranty
  • Thermal breaks at the head and sill
  • Shipped as knock-down (KD) frame kit, glass door panels completely fabricated
  • Integral nailing fin standard, finless optional
  • Factory marine glazing
  • Premium “D” style interior handleset
  • Finger-pull exterior, black color standard
  • Coastal hardware package and stainless steel track cover available
  • All sliding glass doors are provided with clear anodized sills

All Wojan windows and doors feature pour and debridge polyurethane thermal breaks and come with a 10-year warranty against failure of the polymer.LEARN MORE

STANDARD FINISHES AVAILABLE

Bronze 2603

White 2603

Bronze 2605, White 2605, Black 2605, Anodized,
and other non-standard finishes are available with a minimum order.

4 3/4″ 2500/2600/2800 Series Sliding Glass Doors – Product Performance Details2023-08-01T17:43:30-04:00

PRODUCT PERFORMANCE DETAILS

MODEL SILL DEPTH RATING STRUCTURAL/
WATER/AIR
TEST SIZE
AIR INFILTRATION
(cfm/sq ft)
WATER RESISTANCE
(psf)
DEFLECTION
(psf)
STRUCTURAL*
(psf)
2500 ZXO 1 9/16″ LC25 144″W x 83″H 0.19 @ 1.6 psf 3.76 25 37.5
2500 ZXO, optional 1 9/16″ R20 144″W x 98″H 0.19 @ 1.6 psf 3.13 20 35
2600 ZXO 2 1/8″ CW40 144″W x 83″H 0.05 @ 1.6 psf 6.06 40 60
2600 ZXO, optional 2 1/8″ CW40 144″W x 98″H 0.05 @ 1.6 psf 6.06 40 60
2800 OX 2 5/8″ CW55 96″W x 83″H 0.05 @ 1.6 psf 8.36 55 82.5

This is an intentional overload aspect to performance testing and should not be used in lieu of the DP (Design Pressure) when evaluating a product for a specific project or use.

4 3/4″ 2500/2600/2800 Series Sliding Glass Doors – CAD Drawings2023-08-01T17:43:50-04:00

CAD DRAWINGS

CONFIGURATION DESCRIPTION DWG PDF
LC25 2500 Series
CW40 2600 Series
LC25 2500 Series
CW40 2600 Series
LC25 2500 Series
CW40 2600 Series

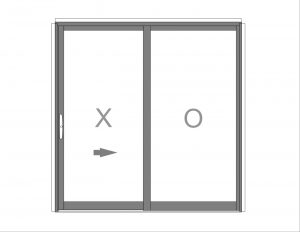

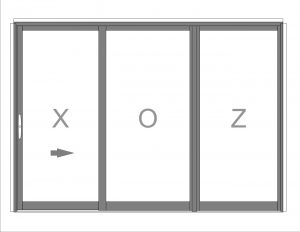

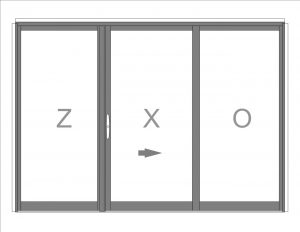

X = moving panel, O = fixed panel, Z = dead panel

4 3/4″ 2500/2600/2800 Series Sliding Glass Doors – Featured Projects2023-08-01T17:44:14-04:00

FEATURED PROJECTS

COLUMBUS, OH


600 Goodale Aptartments

CHARLEVOIX, MI


Hotel Earl

ATLANTA, GA


Generations Apartements

MISHAWAKA, IN


River Rock Apts.

COLUMBIA, MD


Alta Wilde Lake Apartments
