IMPACT WINDOWS

Home » WINDOWS » IMPACT WINDOWS
IMPACT WINDOWS2024-01-16T12:34:26-05:00

3 1/4″ M-950 Series Large Missile Impact

With the same appearance of a window, the Impact Tested Series are custom factory assembled with AW-rated in single-hung and fixed and CW-rated slider version.

3 1/4″ M-950 Series Large Missile Impact – Basic Information2023-08-01T17:18:27-04:00
  • Passed Large Missile D Zone 4 impact testing
  • 3 1/4″ frame depth
  • 1″ sealed IGU
  • Standard rating: DP50
  • .062 typical wall thickness, aluminum alloy 6063-T6
  • Interior and exterior accessory channels
  • Single-hung and fixed/fixed models available

All Wojan windows and doors feature pour and debridge polyurethane thermal breaks and come with a 10-year warranty against failure of the polymer.LEARN MORE

STANDARD FINISHES AVAILABLE

Bronze 2603

White 2603

Bronze 2605

White 2605

Black 2605

Clear Anodized

Bronze Anodized

Non-standard finishes are available with a minimum order.

3 1/4″ M-950 Series Large Missile Impact – Product Performance Details2023-08-01T17:19:07-04:00

PRODUCT PERFORMANCE DETAILS

TYPE RATING STRUCTURAL/
WATER/AIR
TEST SIZE
AIR INFILTRATION
(cfm/sq ft)
WATER RESISTANCE
(psf)
DEFLECTION
(psf)
STRUCTURAL*
(psf)
Single-Hung DP50 48″W x 84″H 0.10 @ 6.2 psf 8.15 50 75
Fixed/Fixed DP50 48″W x 84″H < 0.01 @ 6.2 psf 8.15 50 75

* This is an intentional overload aspect to window performance testing and should not be used in lieu of the window DP (Design Pressure) when evaluating a product for a specific project or use.

These models are approved by the Florida Building Commission. See details here.

2 11/16″ M-85 Series Large Missile Impact

With the same appearance of a window, the Impact Tested Series are custom factory assembled with AW-rated in single-hung and fixed and CW-rated slider version.

2 11/16″ M-85 Series Large Missile Impact – Basic Information2023-08-01T17:22:20-04:00
  • Passed Large Missile D Zone 4 impact testing
  • 2 11/16″ frame depth
  • 1″ sealed IGU
  • Standard rating: DP50
  • .050 typical wall thickness, aluminum alloy 6063-T6
  • Interior and exterior accessory channels

All Wojan windows and doors feature pour and debridge polyurethane thermal breaks and come with a 10-year warranty against failure of the polymer.LEARN MORE

STANDARD FINISHES AVAILABLE

Bronze 2603

White 2603

Bronze 2605

White 2605

Black 2605

Clear Anodized

Bronze Anodized

Non-standard finishes are available with a minimum order.

2 11/16″ M-85 Series Large Missile Impact – Product Performance Details2023-08-01T17:23:14-04:00

PRODUCT PERFORMANCE DETAILS

TYPE RATING STRUCTURAL/
WATER/AIR
TEST SIZE
AIR INFILTRATION
(cfm/sq ft)
WATER RESISTANCE
(psf)
DEFLECTION
(psf)
STRUCTURAL*
(psf)
Fixed DP50 56″W x 68″H < 0.01 @ 1.6 psf 7.52 50 75
Fixed-Fixed DP50 60″W x 78″H < 0.01 @ 6.2 psf 7.52 50 75

* This is an intentional overload aspect to window performance testing and should not be used in lieu of the window DP (Design Pressure) when evaluating a product for a specific project or use.

These models are approved by the Florida Building Commission. See details here.

2 11/16″ M-85 Series Large Missile Impact – Featured Projects2023-08-01T17:24:03-04:00

FEATURED PROJECTS

PENSACOLA, FL


Fairfield Inn & Suites by Marriott®

SLIDELL, LA


Wingate® by Wyndham

MOBILE, AL


Homewood Suites by Hilton®

PASCAGOULA, MS


Hilton Garden Inn®

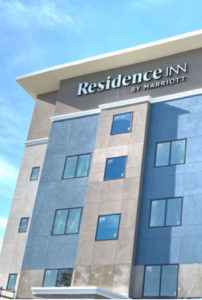

PORT ARTHUR, TX


Residence Inn by Marriott®
