DESCRIPTION DRAWING APPLICABLE PRODUCT SERIES DWG PDF
Drip Cap show dimensions modal icon 2 11/16″ M-85
3 1/4″ M-950
3 1/4″ M1500
2 3/8″ 4500/4600
Face Flange 1.5″ show dimensions modal icon 2 3/8″ 4500/4600

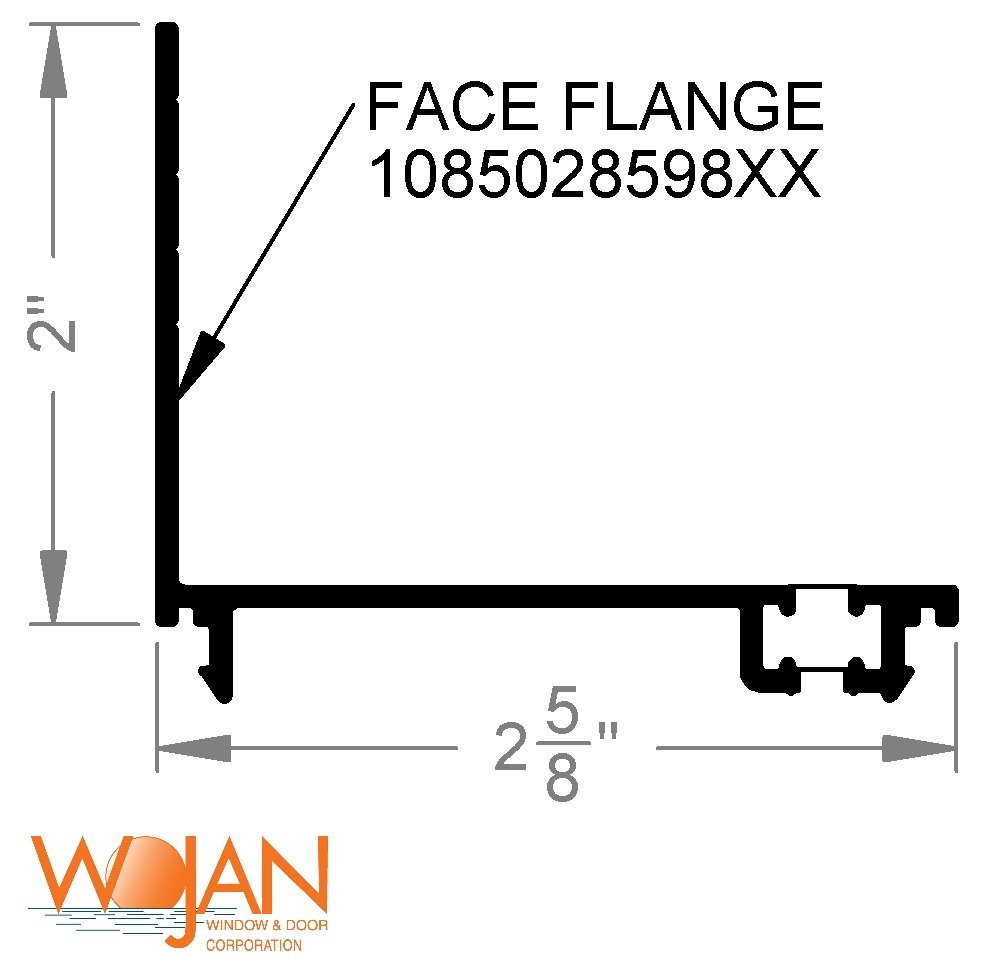

Face Flange, 2″ show dimensions modal icon 2 11/16″ M-85
Face Flange Modified, 2.5″ show dimensions modal icon 3 1/4″ M-950
3 1/4″ M1500
Mull, 3-Piece show dimensions modal icon 3 1/4″ M-950
3 1/4″ M1500
Mull, 3-Piece show dimensions modal icon 2 11/16″ M-85
Mull, 3-Piece show dimensions modal icon 2 3/8″ 4500/4600
Mullion, 90 Degree show dimensions modal icon 2 3/8″ 4500/4600
Mullion, Modified H show dimensions modal icon 2 11/16″ M-85
Mullion, H show dimensions modal icon 3 1/4″ M-950
3 1/4″ M1500
Mull Cover, 3″ show dimensions modal icon 2 11/16″ M-85
3 1/4″ M-950
3 1/4″ M1500
2 3/8″ 4500/4600
Mull Strip show dimensions modal icon 2 11/16″ M-85
Nail Fin, Applied show dimensions modal icon 3 1/4″ M-950
3 1/4″ M1500
Nail Fin with Flange, Modified Applied show dimensions modal icon 3 1/4″ M-950
3 1/4″ M1500

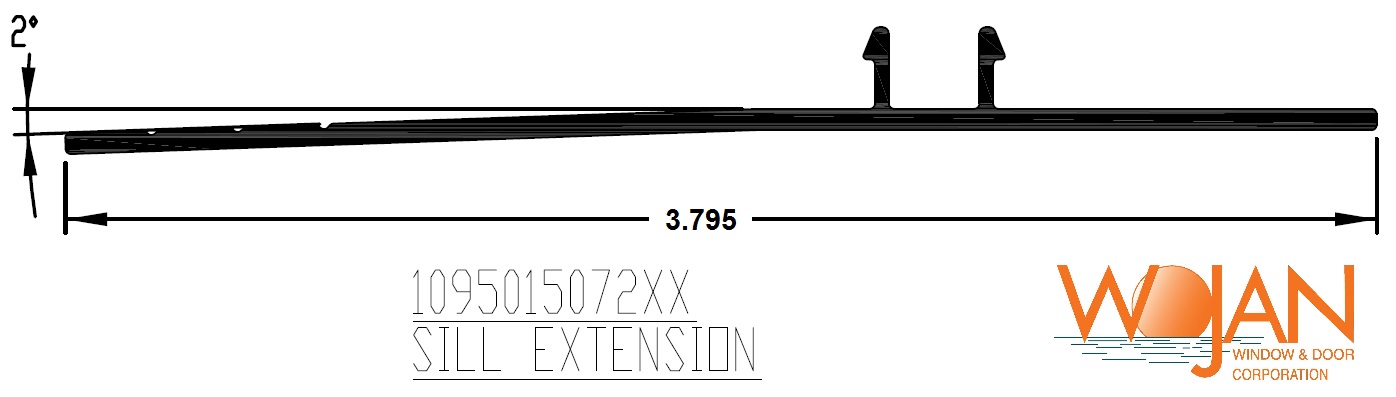

Sill Extension, 0.5″ show dimensions modal icon 3 1/4″ M-950
3 1/4″ M1500
Sill Extension, 3.5″ show dimensions modal icon 3 1/4″ M-950
3 1/4″ M1500
Snap Trim show dimensions modal icon All Products
Snap Trim, 1.5″ show dimensions modal icon All Products
Snap Trim Cover and Base show dimensions modal icon All Products
Snap Trim Cap and Base, Blast show dimensions modal icon 3 1/4″ M-950 Blast Models
2 3/8″ 4500/4600 Blast Models
Splice Cover show dimensions modal icon 2 3/8″ 4500/4600
Starter Clip/Strap Anchor show dimensions modal icon 3 1/4″ M-950
3 1/4″ M1500
Storefront Adapter show dimensions modal icon 2 3/8″ 4500/4600
Strap Anchor, 5 3/8″ show dimensions modal icon 2 11/16″ M-85
Strap Anchor, 4″ show dimensions modal icon 2 3/8″ 4500/4600
Sub-Sill and Sub-Sill Anchor Clip show dimensions modal icon 2 11/16″ M-85
3 1/4″ M-950
3 1/4″ M1500
2 3/8″ 4500/4600
